Description

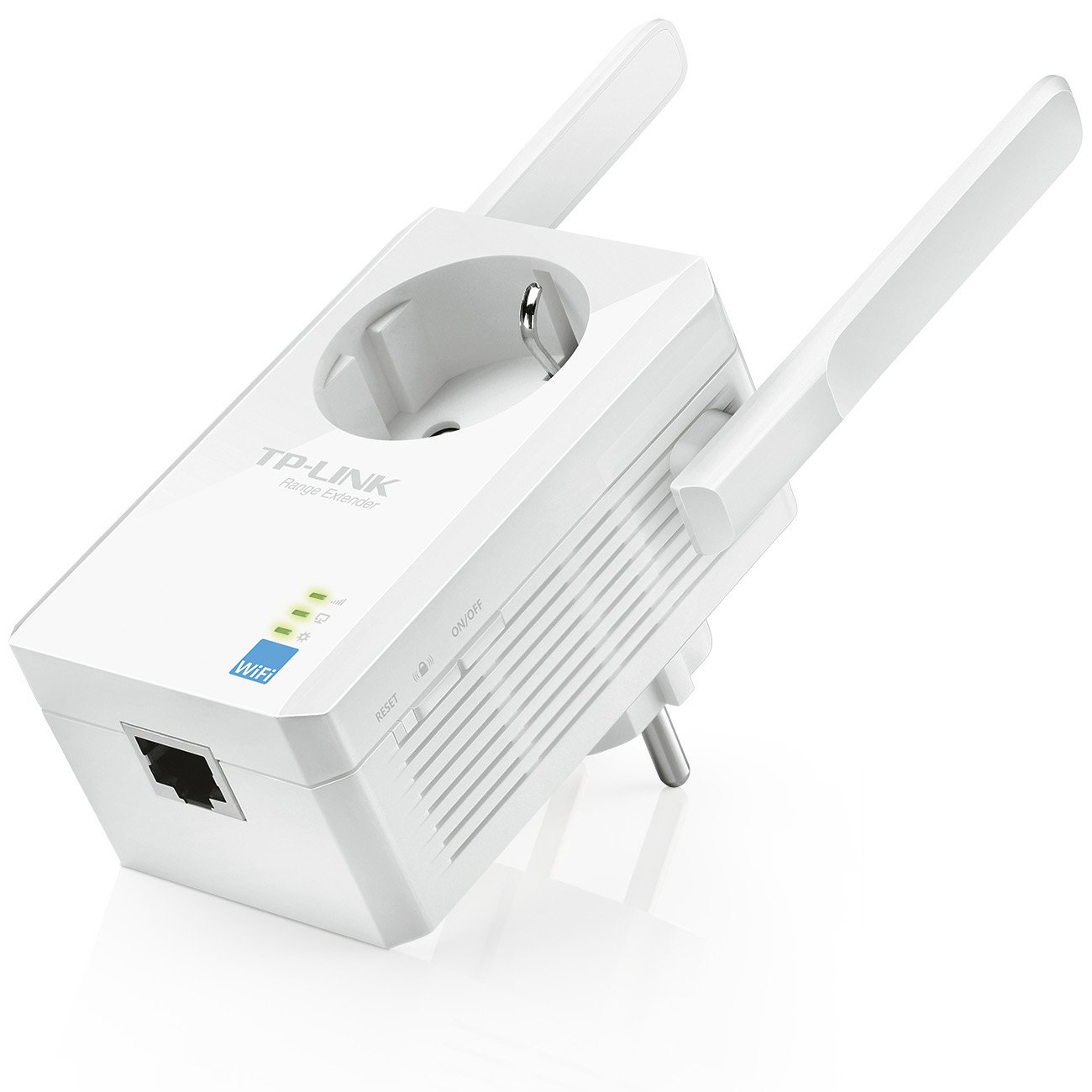

TP‑Link 300 Mbps Wi‑Fi Range Extender with AC Passthrough – TL‑WA860RE

TP-Link TL‑WA860RE is a compact, wall-plug design delivers up to 300 Mbps on the 2.4 GHz band to eliminate dead zones, using two external antennas for stable signal strength. An integrated AC passthrough socket ensures no power outlet is wasted. Setup is streamlined—just press WPS on your router and the RE button on the extender. Features like smart signal indicators for optimal placement, Ethernet bridge for wired devices, and AP mode to broadcast a wired network enhance its versatility. Managed via the TP‑Link Tether app or web interface, it brings powerful and flexible connectivity to homes and offices.

Product Features

Wi‑Fi range extension

Boosts wireless network coverage up to 300 Mbps in hard‑to‑reach areas, ideal for HD streaming and online gaming.

Integrated AC passthrough

Built‑in power socket means you don’t lose the use of a wall outlet when the extender is plugged in.

Dual external antennas

Two high-quality antennas increase stability and reach, ensuring reliable signal throughout rooms and floors.

One-button setup

WPS-enabled pairing with your router makes installation quick and wire-free.

Smart signal indicator

LED lights guide optimal placement by indicating signal strength from the router.

Wired device support

Ethernet port allows connection of a wired device like a smart TV or game console, acting as a wireless bridge or AP mode.

Product Specifications

• Wireless standards: IEEE 802.11n/g/b (2.4 GHz)
• Maximum wireless rate: Up to 300 Mbps
• Antenna: 2 external fixed antennas
• Ports: 1 × 10/100 Mbps Ethernet port
• Buttons: RE (range extender), reset button
• Power consumption: ~3 W (up to ~6.5 W with AC passthrough)
• Plug types: EU / UK / US variants
• Dimensions: 110 × 65.8 × 75.2 mm
• Operating conditions: 0–40 °C; 10–90 % humidity (non-condensing)
• Security: WEP/WPA/WPA2‑PSK encryption
• Wireless features: WMM, MAC filtering, smart LED, domain-login
• Modes: Range extender, access point (AP)
• Managed via: TP‑Link Tether app and web UI
