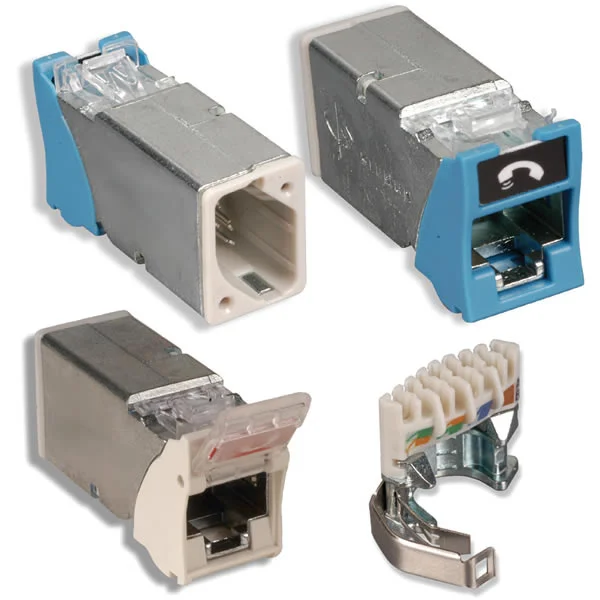

Siemon Cat 6A Keystone Jack Module
Siemon Z‑MAX® Cat 6A Keystone Jack is a high-performance, 10 Gbps/class EA-rated module designed for speed, reliability, and ease of use. It supports 500 MHz bandwidth with UTP or F/UTP shielding, accommodates 22–26 AWG solid or stranded cables, and terminates in under 60 seconds using the Z‑TOOL and patented Zero‑Cross IDC alignment, ensuring consistent alien crosstalk isolation. The glass-reinforced nylon or die-cast zinc housing (UL94V‑0 rated) offers robust EMI shielding, strain relief, and optional dust door, while hybrid flat/angled design provides mounting versatility.
Compatible with flat/angled faceplates and high-density 48‑port/1U patch panels, it supports PoE up to 100 W and includes color-coded icons for easy identification . Backwards compatible with Cat 5e/6 and operating from –10 °C to 60 °C, it’s ETL/UL2043 certified for plenum use—making it a future-proof, installation-efficient solution for data centers, smart offices, and industrial environments.
Description
Siemon Cat 6A Keystone Jack Module
Technical Specifications
Z-MAX® Series – Optimized for 10G Performance and Rapid Deployment.
-
Core Specifications
| Feature | Detail |
| Category/Class | Cat 6A / Class EA (ANSI/TIA-568-C.2, ISO/IEC 11801) |
| Data Transfer Speed | 10 Gbps (10GBASE-T) with headroom for emerging applications |
| Bandwidth | 500 MHz (Exceeds standard Cat 6A requirements) |
| Termination Type | Tool-less or Z-TOOL-guided (60-second termination) |
| Wiring Standards | T568A/B universal compatibility |
| Conductor Compatibility | Supports 22–26 AWG solid/stranded cables |
| Shielding Options | UTP (Unshielded) or F/UTP (Foiled) variants |
| Jacket Material | Glass-reinforced nylon (UL94V-0 rated) |
-
Performance & Durability
- Alien Crosstalk Mitigation: Patented diagonal IDC alignment and PCB-based tuning for superior noise isolation.
- PoE Support: Compatible with IEEE 802.3af/at/bt(PoE++ up to 100W) – Crowned jack contact geometry prevents arcing damage.
- Environmental Ratings:
- Operating Temp: -10°C to 60°C(Industrial-grade durability).
- Fire Safety: LSZHoptions available for plenum spaces.
-
Installation Advantages
- Hybrid Mounting: Fits flat/angled faceplates with front/rear pass-thru options.
- High-Density Design: Slim profile for 48-port/1Upatch panels.
- Dust Protection: Optional spring-loaded door minimizes contamination.
- Color-Coding: High-visibility icons for port identification.
-
Key Benefits
Future-Proof: Exceeds Cat 6A standards for 25G/40G readiness.
Time-Saving: Tool-less termination reduces labor costs by 30%.
Robust Build: Die-cast housing for EMI shielding and strain relief.
Applications
- Data Centers: High-density server patching.
- Smart Offices: VoIP and 4K video conferencing.
- Industrial IoT: Resists EMI in factory environments.
Comparison: UTP vs. Shielded Variants
| Feature | UTP (Z6A-05) | F/UTP (Z6A-SK01) |
| Shielding | Unshielded | Foiled pairs |
| EMI Protection | Moderate | High (Alien AXT) |
| Use Case | Offices | Data centers |
For TEMPEST-rated secure installations, consider Siemon’s fully shielded TERA modules.
Compliance
Certifications: ETL, UL2043 (air-handling spaces)
