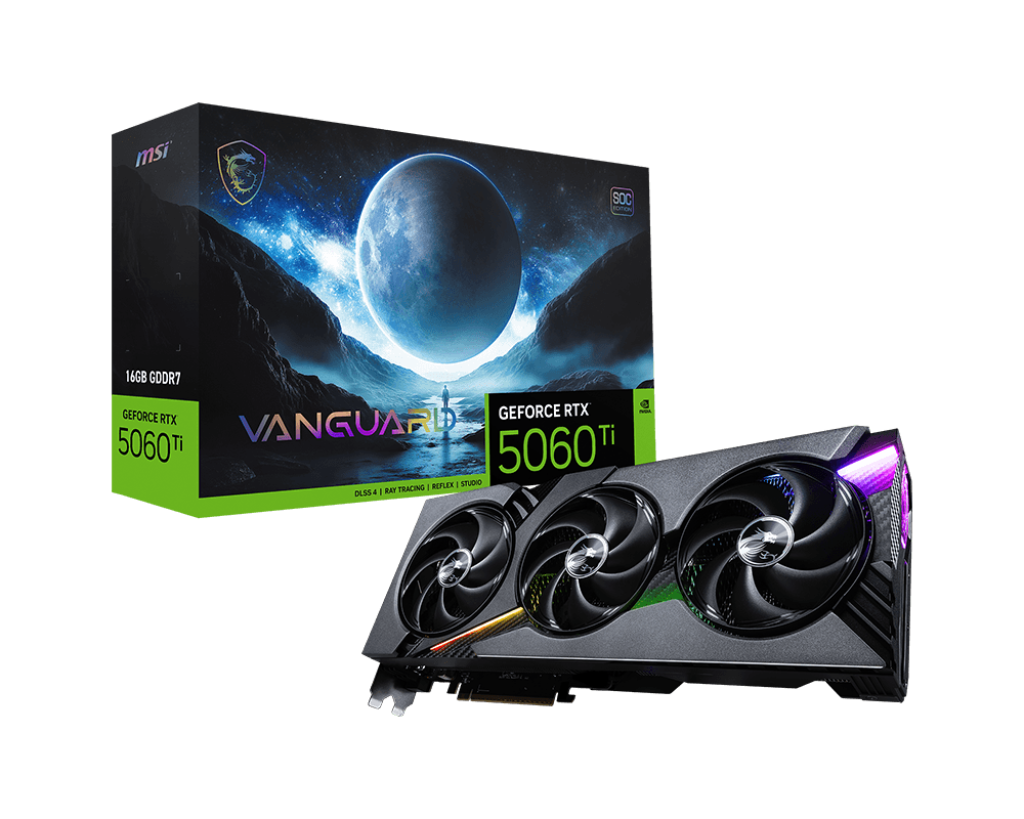

MSI GeForce RTX 5060 Ti 16 GB VANGUARD SOC OC (912V532‑026 / 912V535‑026)
MSI GeForce RTX 5060 Ti 16 GB VANGUARD SOC OC (912V532/535‑026) is an overclocked powerhouse built on NVIDIA’s Blackwell architecture with 4,608 CUDA cores and boost clocks between ~2,692–2,707 MHz via MSI Center, paired with 16 GB of GDDR7 VRAM at 28 Gbps (~448 GB/s). Its robust TRI FROZR thermal design—featuring a vapor chamber, StormForce triple-fan cooling, and reinforced backplate—maintains low temperatures and quiet operation even under load, supported by PCIe 5.0 x8 and a single 16‑pin power connector drawing around 180 W (MSI recommends a 600 W PSU). The Vanguard SOC excels at 1440p and entry-level 4K gaming with ray tracing and DLSS 4, and includes dual BIOS and MSI Center support for performance/acoustic tuning.
Enthusiasts have confirmed impressive overclocking headroom—+400 MHz core and +1,200–1,500 MHz memory boosts are stable, frequently reaching ~3.1 GHz core with only ~63 °C temperatures—delivering up to ~10% extra performance. With cutting-edge features like AV1 encoding/decoding, Reflex 2, and high-resolution display support (3×DP 2.1b + HDMI 2.1b), it’s well-suited for gamers and creators seeking a next-gen, high-performance card—provided your case and PSU can accommodate its ~337 × 140 × 61 mm size and 2 kg weight.
Description
MSI GeForce RTX 5060 Ti 16 GB VANGUARD SOC OC (912V532‑026 / 912V535‑026)
Core Specifications
- GPU Architecture: NVIDIA Blackwell (GB206‑300)
- CUDA Cores: 4,608
- Clock Speeds:
- Boost: ~2,692 MHz (varies 2,647–2,707 MHz depending on BIOS/profile)
- Extreme Performance Mode: up to 2,707 MHz via MSI Center
Memory & Bandwidth
- VRAM: 16 GB GDDR7 @ 28 Gbps on a 128‑bit bus (~448 GB/s)
Power & Interface
- TDP: 180 W Power Connector: 1× 16‑pin (12VHPWR)
- PSU Recommendation: ≥ 600 W
- Bus Interface: PCIe 5.0 x16 (operating at x8)
Display Outputs
- Ports: 3× DisplayPort 2.1b, 1× HDMI 2.1b (supports 4K @ 480 Hz or 8K @ 120 Hz with DSC, VRR, HDR)
- Max Displays: 4 simultaneous
- Max Resolution: 7,680 × 4,320 (8K)
Cooling & Physical Build
- Cooling System: MSI HYPER FROZR (aka TRI FROZR) with triple StormForce fans, vapor chamber, core pipes, wave-curved fins, and durable metal backplate
- Dimensions: ~337 × 140 × 61 mm (~33.7 × 14 × 6.1 cm)
- Weight: ~1,278 g (card); ~2,059 g (boxed)
NVIDIA APIs & Features
- API Support: DirectX 12 Ultimate, OpenGL 4.6, Vulkan, OpenCL
- RT Cores: 4th-gen
- Tensor Cores: 5th-gen (supports DLSS 4 with Multi-Frame Gen & Ray Reconstruction)
- NVENC/NVDEC: 9th-gen / 6th-gen (with AV1)
- Other NVIDIA Tech: G‑Sync, Reflex 2, Frame Warp, ACE, Studio/Broadcast suite, HDCP
Performance & Optimization Insights
- Ideal For: High-fidelity 1440p and entry-level 4K gaming, ray tracing, DLSS 4, creative work, and AI-driven tasks.
- Thermals & Noise: The HYPER FROZR cooler keeps temperatures low and fans quiet even under load—just ensure your case has good airflow.
- BIOS Modes: Dual BIOS (Gaming/Silent) allows fine-tuning for performance or acoustics via MSI Center.
- Boost Behavior: With MSI Center Extreme Performance or custom tuning via Afterburner, expect boost clocks around 2.7 GHz.
Summary Table
| Feature | Specification |
| GPU/CUDA Cores | RTX 5060 Ti, 4,608 CUDA cores |
| Boost Clock | 2,692 MHz (defaults), up to 2,707 MHz in Extreme Performance mode |
| VRAM/Bandwidth | 16 GB GDDR7 @ 28 Gbps (128-bit bus, ~448 GB/s) |
| Power/System | 180 W TDP, 1×16-pin connector, PSU ≥ 600 W, PCIe 5.0 x8 |
| Cooling | HYPER/ TRI FROZR + vapor chamber, StormForce fans, reinforced backplate |
| Dimensions | 337 × 140 × 61 mm; weight ~1.28 kg |
| Outputs | 3× DP 2.1b, 1× HDMI 2.1b (8K/4K support) |
| APIs/Features | DX12 Ultimate, RTX, DLSS 4, Reflex 2, ACE, AV1 NVENC/DEC |
| Use Case | Gamers & creators targeting 1440p/4K, ray tracing, AI workloads |
MSI RTX 5060 Ti 16 GB VANGUARD SOC OC is a premium mid/high‑range card—featuring generous 16 GB of fast GDDR7 memory, very high factory boost clocks (~2.7 GHz), powerful cooling, and full support for next-gen NVIDIA features (DLSS 4, AV1, etc.). A high-end option for high-refresh/high-resolution gaming and creative/AI tasks, provided you have the clearance and a 600 W PSU with a 16‑pin connector.
