Description

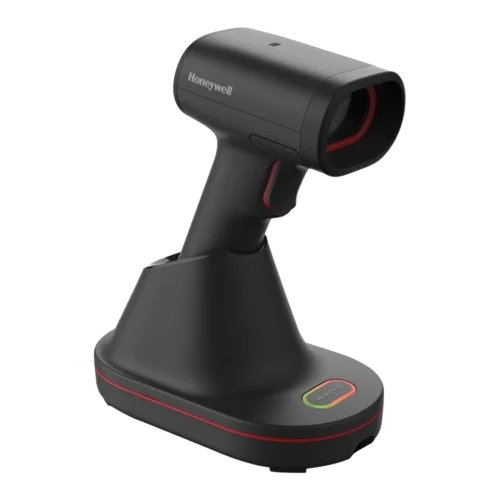

Honeywell HH492 Wireless Handheld 2D Barcode Scanner

Honeywell HH492 is a high-performance wireless 2D barcode scanner designed for fast and accurate scanning in demanding business environments. It is built to handle a variety of barcode types, including damaged, difficult-to-read, or digital barcodes on screens. The HH492 integrates Honeywell’s GEN7 platform and a 1472 module, making it ideal for inventory management, retail operations, government use, and distribution centers. Featuring long-range Bluetooth® connectivity and industrial-grade durability, the HH492 ensures flexibility and efficiency for various applications.

Key Features

• High-Performance Scanning: Quickly scans 1D and 2D barcodes, including damaged, poor-quality, and digital codes.
• Extended Scan Range: Capable of scanning from a distance to reach items at the bottom of shopping carts or hard-to-reach areas.
• Industrial-Grade Durability: Withstands drops from 1.5 meters (4.9 ft) and is IP40-rated for dust and moisture resistance.
• Enhanced Flexibility: Supports various barcode symbologies, including standard 1D, PDF, 2D, and DotCode symbologies.
• Long Bluetooth® Range: Provides up to 30 meters (98 feet) of wireless range with the communication base for greater mobility.

Dimensions & Physical Specifications

• Scanner Dimensions: 64 mm × 166 mm × 84 mm (2.5 in × 6.5 in × 3.3 in)
• Charger/Communication Base Dimensions: 130 mm × 86 mm × 85 mm (5.1 in × 3.4 in × 3.3 in)
• Weight:
  • Scanner: 190 g (6.7 oz)
  • Base: 150 g (5.29 oz)

Environmental Specifications

• Operating Temperature:
  • Charging: 5°C to 40°C (41°F to 104°F)
  • Non-Charging: -20°C to 50°C (-4°F to 122°F)
• Storage Temperature: -40°C to 60°C (-40°F to 140°F)
• Humidity: 0% to 95% relative humidity, non-condensing
• Drop Resistance: Withstands drops from 1.5 meters (4.9 feet)
• Environmental Sealing: IP40-rated for protection against dust and moisture
• Light Levels: Operates in light conditions ranging from 0 to 100,000 lux

Electrical & Power Specifications

• Battery Type: 2730mAh Li-ion, providing up to 50,000 scans per charge
• Operating Time: 12 hours of continuous operation per charge
• Charging Time: 4 hours
• Operating Power (Charging):
  • USB Input: 2.5 W (500mA @ 5V)
  • Adapter Input: 5W (1000mA @ 5V)
• Standby Power (Base): 0.25 W (50mA @ 5V)
• Host System Interfaces: USB, HID

Scanning Performance

• Scan Pattern: Area imaging (1040 × 720 pixel array CMOS)
• Minimum Print Contrast: 25%
• Motion Tolerance: 25 cm/s (9.8 in/s) for optimal scanning performance
• Resolution:
  • 1D: 4 mil
  • 2D: 6.7 mil
• Scan Angle:
  • Horizontal: 39.2° nominal
  • Vertical: 27.4° nominal
• Depth of Field (Typical Performance):
  • 5 mil Code 39: 25 mm to 200 mm (1.0 in to 7.9 in)
  • 13 mil UPC: 15 mm to 400 mm (0.6 in to 15.8 in)
  • 6.7 mil PDF417: 15 mm to 160 mm (0.6 in to 6.3 in)
  • 20 mil QR Code: 5 mm to 300 mm (0.2 in to 11.8 in)

Wireless Connectivity

• Bluetooth® Version: v5.2 with Adaptive Frequency Hopping
• Radio Range: 30 meters (98 feet) line of sight
• Indicators: Good Decode LEDs, Beeper, and Rear View LEDs for user feedback

Use Cases

• Retail: Ideal for point-of-sale, inventory management, and line busting.
• Distribution & Warehousing: Streamlines inventory tracking and shipment processing.
• Government: Suitable for document and ID scanning in government offices.
• Healthcare & Hospitality: Scans patient information, guest check-ins, and digital codes.

Warranty

• 3-Year Warranty: Covers manufacturing defects.
