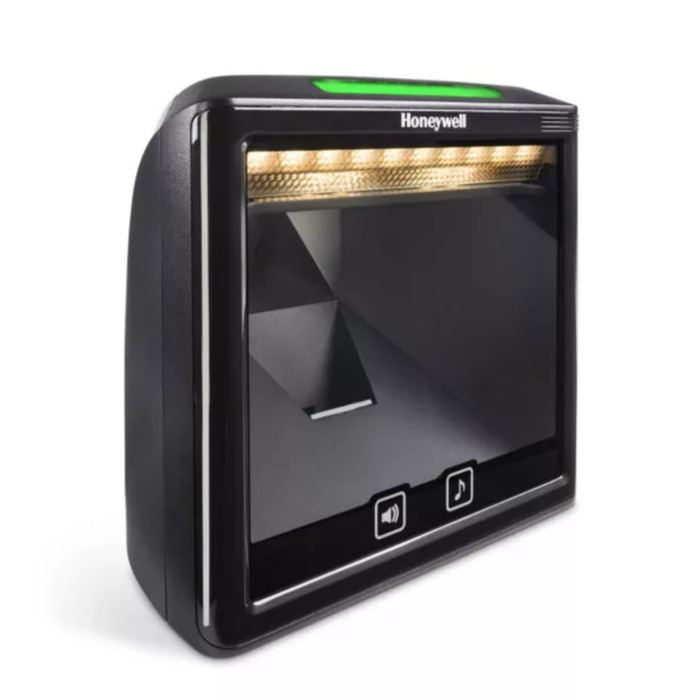

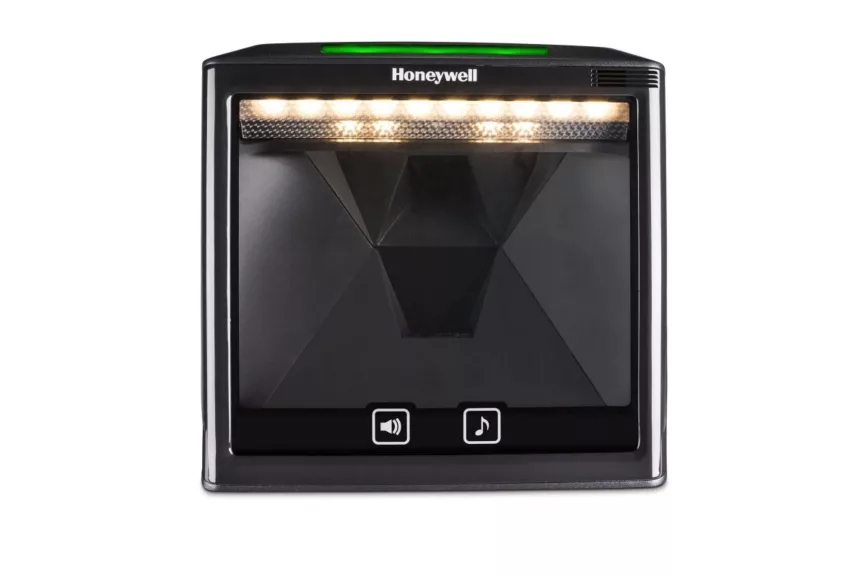

Honeywell Barcode Table Scanner (7980G-2USBX-0)
Honeywell 7980G‑2USBX‑0 (Solaris 7980g) is a rugged countertop area-imaging scanner powered by Adaptus 6.0 technology, providing omnidirectional scanning of both 1D and 2D barcodes—including digital coupons, smartphone screens, printed IDs, and digital wallets—while suppressing glare with soft white LED illumination. It supports wide-angle scanning (skew up to 75°, pitch 65°), operates under bright lighting (up to 100,000 lux) with motion tolerance of roughly 13 mil, and reads at standard ranges with a print contrast minimum of 25%.
Designed for seamless integration, it offers host interfaces including USB, KBW, RS‑232, RS‑485, and even integrated EAS with power-over-USB and auxiliary USB for handheld scanner connectivity; it draws power directly via USB and meets IP5X for dust resistance. Compact in size (≈14.8 × 15.2 × 8.5 cm), operates from 0–40 °C, and comes with a three‑year warranty—making it ideal for high-volume retail, hospitality, and service counter environments.
Description
Honeywell Barcode Table Scanner (7980G-2USBX-0)
Features
- Technology: Adaptus™ 6.0 Area-Imaging Technology
- Illumination: Soft white LED to minimize glare while maintaining performance
- Scanning Capability:
- Omnidirectional scanning for 1D and 2D barcodes
- Capable of reading digital coupons, smartphone screens, printed ID cards, and digital wallets
Scanning Specifications
- Skew Angle: 75 degrees
- Maximum Brightness: 100,000 lux
- Motion Tolerance: 13 mil at the optimal focal point
- Scanning Range: Standard range (SR)
- Print Contrast: 25%
- Scan Pattern: Area Image
- Pitch Angle: 65 degrees
Hardware
- Host System Interfaces: KBW, RS-232, RS485, USB
- Form Factor: Countertop
- Engine Type: Area-imaging
Electrical Specifications
- Power Input Voltage: 5 – 5.2 V DC
- Standby Current: 270 mA
- Sleep Mode Current: 210 mA
Environmental Specifications
- Operating Temperature: 0 to 40 °C (32 to 104 °F)
- Storage Temperature: -20 to 60 °C (-4 to 140 °F)
- Operating Humidity: 5 to 95% non-condensing
- Protection Rating: IP5X
Dimensions
- Overall Dimensions: 14.8 x 15.2 x 8.5 cm (5.83 x 5.98 x 3.35 in)
Warranty
- Duration: 3 years
