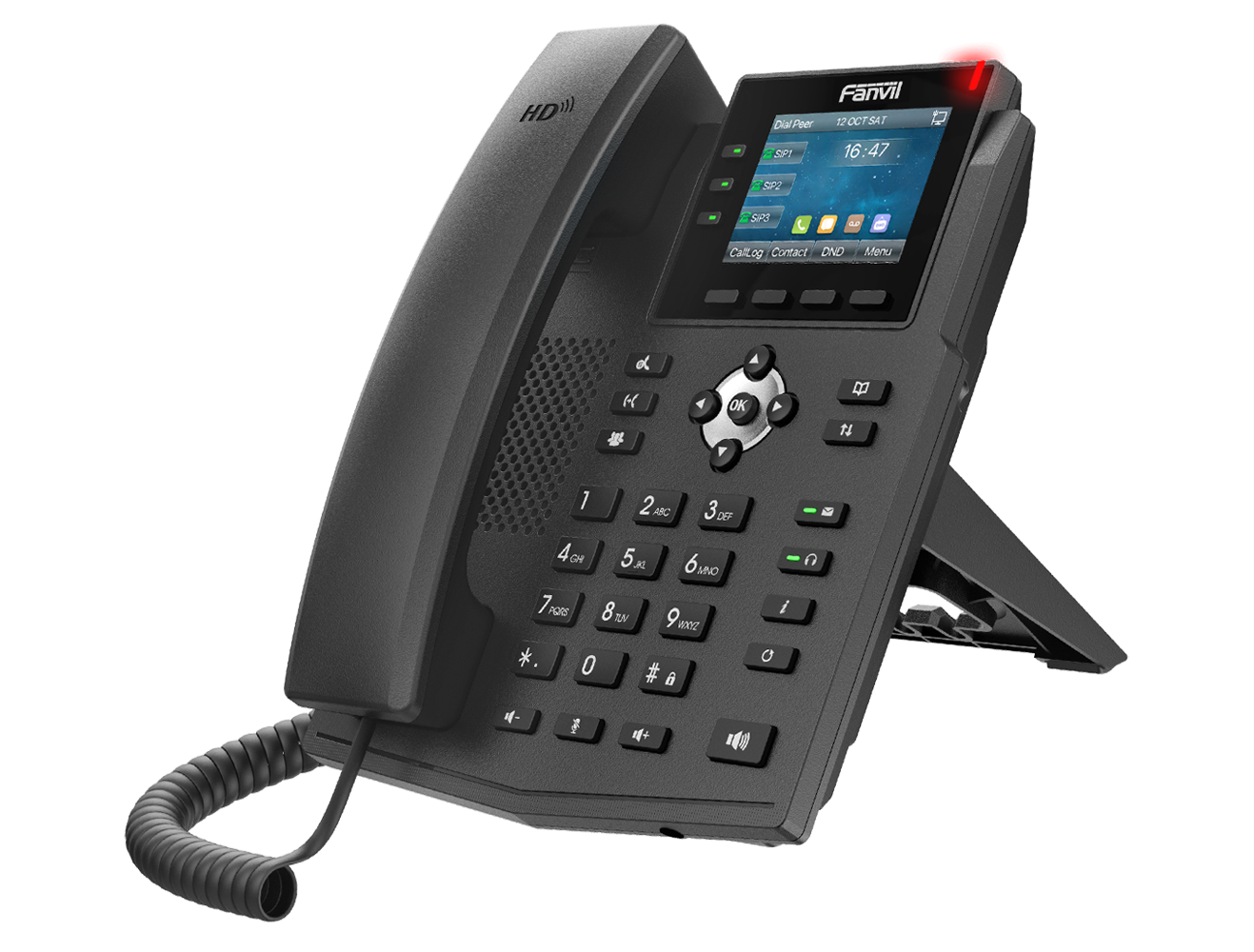

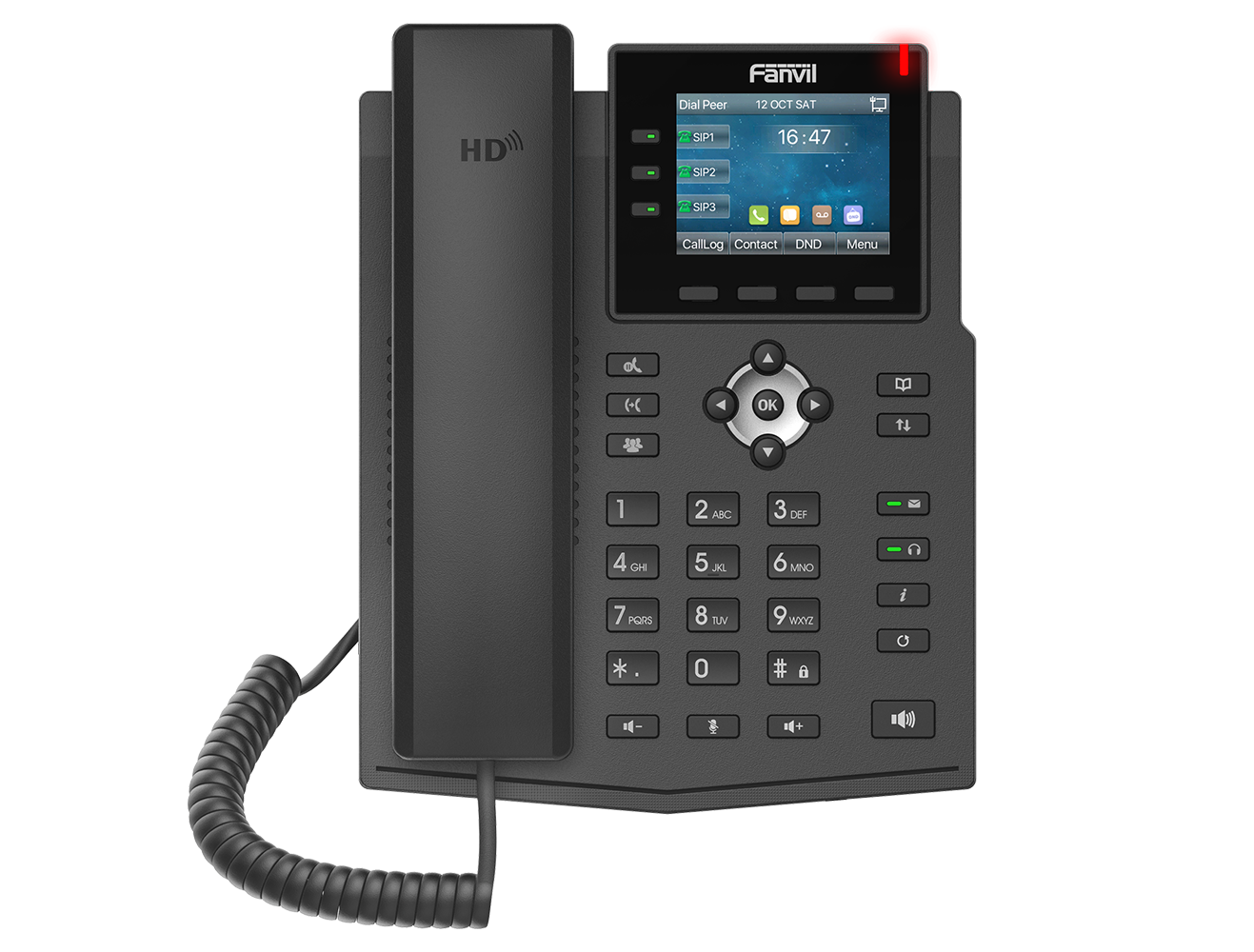

Fanvil X3U Enterprise IP Phone
Fanvil X3U Entry-Level Gigabit IP Phone is a feature-packed, cost-effective SIP handset designed for small to mid-sized business environments. It boasts a vibrant 2.8″ (320×240) color display, supports 6 SIP lines, and offers 3-way conferencing and SIP Hotspot functionality. With dual Gigabit Ethernet ports and integrated PoE, it delivers HD audio through wideband codecs (G.722, Opus) and advanced voice enhancers like echo cancellation, noise reduction, and jitter buffering.
The device supports EHS headsets (Plantronics, Jabra), features local and LDAP/XML phonebooks (up to 1,000 entries), call logs, programmable keys, and full SIP feature set (hold, transfer, park, pickup, hot desking). Administrators benefit from versatile provisioning options (FTP/TFTP/HTTP/HTTPS/DHCP Option 66/SIP PnP/TR‑069), robust security, VPN support, and web GUI management.
Description
Fanvil X3U Enterprise IP Phone
Is an ideal cost-effective Gigabit IP phone, The phone provides the direct access to instructions with the intuitive design of high-resolution color display and newly increased line keys, offering greater flexibility, productivity, to exceed the different demands of businesses. Wideband codec of G.722 and Opus in this device deliver you an immersive HD audio experience in both high band and low band with the network.
Technical Specifications of the Fanvil X3U IP phone
- 6 SIP Lines
- HD Voice
- PoE enabled
- 2.8 inch colour screen
- Handset / Hands-free / Headst mode
- Desktop stand/ Wall-mounted installation (needs additional wall handing parts)
- Optional external power supply
Phone functions
- Local Phonebook (1000 entries)
- Remote Phonebook (XML/LDAP, 1000 entries)
- Call logs (In/Out/Missed, 600 entries)
- Black/White List Call Filter
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
- Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
- Support Recording (Through Server)
- Action URL / Active URI
- uaCSTA
Call functions
- Call out / Answer / Reject
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forward (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Parking/Pick-up (Depending on server)
- Redial
- Do-Not-Disturb
- Auto-Answering
- Voice Message (With server)
- 3-way Conference
- Hot Line
- Hot desking
Audio
- HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
- HAC handset
- Wideband ADC/DAC 16KHz Sampling
- Narrowband Codec: G.711a/u, G.726-32K, G.729A, iLBC
- Wideband Codec: G.722, Opus
- Full-duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer
- DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
