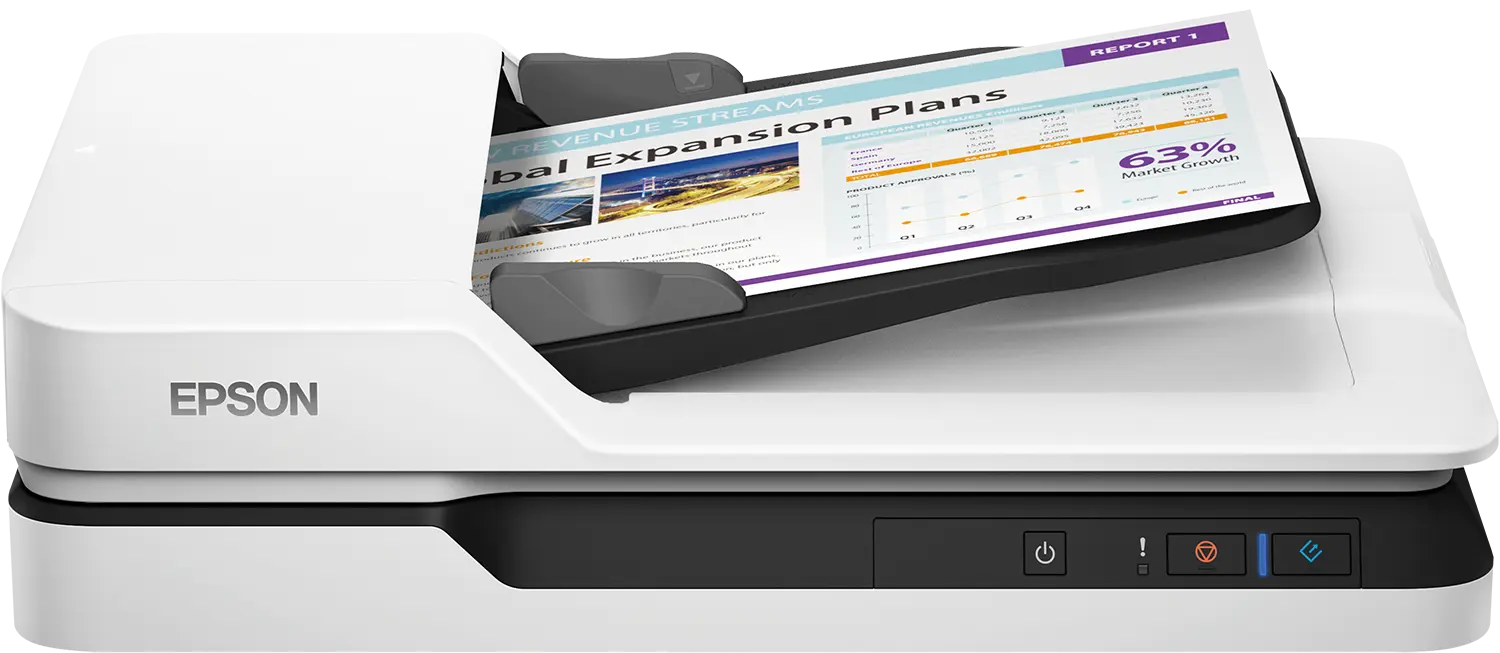

Epson WorkForce DS-1630 Flatbed Color Document Scanner
Epson WorkForce DS‑1630 is a high‑productivity hybrid flatbed and 50‑sheet ADF color scanner that delivers up to 25 ppm simplex and 10 ipm duplex at up to 1200 dpi (flatbed) and 600 dpi (ADF). Ideal for busy offices, it handles various media—standard documents, IDs, passports, even legal‑size papers—while automatic features like auto‑crop, skew correction, blank‑page removal, and OCR (via ABBYY FineReader) streamline workflows.
With TWAIN/ISIS drivers, USB 3.0 connectivity (plus optional Ethernet), and one‑touch scanning to cloud services (Dropbox, SharePoint, Google Drive), it supports both Windows and Mac systems. Backed by a robust 1,500‑page daily duty cycle and 1‑year Advance‑Exchange warranty, it combines versatility, speed, and reliability in a compact footprint.
Description
Epson WorkForce DS-1630 Flatbed Color Document Scanner
Epson DS-1630 is a versatile flatbed color document scanner that combines the functionality of a flatbed with a 50-sheet automatic document feeder (ADF), making it suitable for various scanning tasks. Below are its detailed specifications:
Specificarions.
Scanner Type
- Flatbed color document scanner with an integrated ADF.
Optical Resolution
- Flatbed: 1200 dpi
- ADF: 600 dpi
Hardware Resolution
- Flatbed: 1200 x 1200 dp
- ADF: 600 x 600 dpi
Color and Grayscale Depth
- Color Bit Depth: 30-bit internal / 24-bit externa
- Grayscale Bit Depth: 8-bit per pixel internal / external
Optical Sensor
- Contact Image Sensor (CIS)
Maximum Scan Area
- Flatbed: 8.5″ x 11.7″ (216 x 297 mm)
- ADF: 8.5″ x 14″ (216 x 356 mm)
Scan Speed
- Simplex: Up to 25 pages per minute (ppm)
- Duplex: Up to 10 images per minute (ipm)
Automatic Document Feeder (ADF)
- Capacity: 50 sheets
- Supported Document Sizes: Minimum 3.5″ x 5″ (89 x 127 mm); Maximum 8.5″ x 14″ (216 x 356 mm)
Daily Duty Cycle
- Up to 1,500 scans per day
Light Source
- 3-color RGB LED
Image Processing Features
- Auto crop
- Skew correction
- Blank page removal
- Background removal
Connectivity
- USB 3.0
Supported Operating Systems
- Windows 7, 8, 8.1, 10
- Mac OS X 10.6.8 – 10.11.x
Included Software
- Epson Scan
- Epson Document Capture
- ABBYY FineReader OCR
Physical Dimensions
- Width: 12.5 inches (317.5 mm)
- Depth: 11.7 inches (297.18 mm)
- Height: 4.8 inches (121.92 mm)
- Weight: Approximately 9 lbs (4.1 kg)
These specifications highlight the DS-1630’s capability to handle a variety of scanning tasks efficiently, from standard documents to delicate items like IDs and passports.
