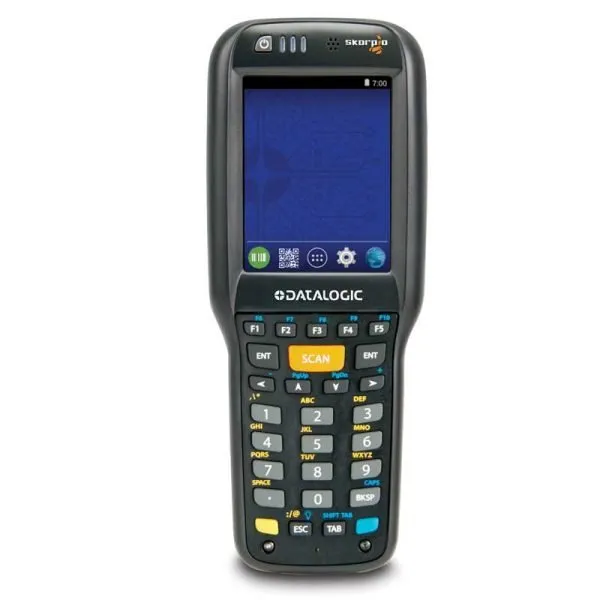

Skorpio™ X4 Mobile Computer

Specifications

Operating Systems

• Android v4.4: Offers modern features and an upgradable path. The OS can be swapped from WEC7 to Android or vice versa at a Datalogic Service Center.

Performance

• Processor: Powered by a high-performance Texas Instruments OMAP4 1 GHz multicore processor, delivering fast and efficient operations.
• Memory: Comes with 1 GB of RAM and 8 GB of Flash memory, allowing ample storage for applications and data. Memory expansion is available via a micro SDHC slot that supports up to 32 GB.

Display

• Screen: Features a 3.2-inch transflective TFT LCD with 240 x 320 pixel resolution, ensuring high visibility even in bright environments.
• Touchscreen: Integrated touch functionality for easy navigation and data entry.
• Backlight: Equipped with LED backlighting for enhanced visibility in various lighting conditions.

Keypad Options

• 38-Key Functional Keypad: Balances between alphanumeric and functional keys for versatile use cases.

Ergonomics and Design

• Build: Designed for comfortable use, with the best-in-class ergonomics to reduce operator fatigue.

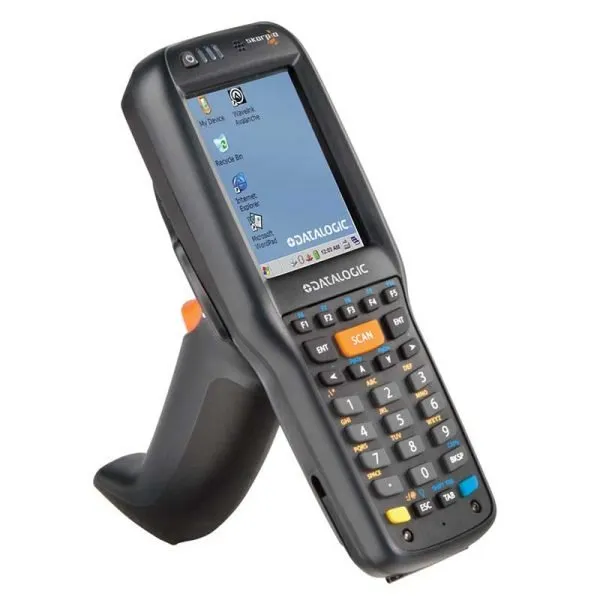

• Pistol-Grip Option: The pistol-grip version features a durable and comfortable handle, making it ideal for scan-intensive tasks.
• Durability: Rugged construction ensures the device can withstand harsh environments, multiple drops, and shocks.

Durability

• Drop Resistance: Withstands drops from 1.8 meters (6 feet) onto concrete.
• Ingress Protection (IP): IP64-rated for resistance against dust and water ingress, providing reliable performance in tough conditions.
• Operating Temperature: Functions within -10 to 50°C (14 to 122°F).
• Storage Temperature: Can be stored safely in temperatures ranging from -20 to 70°C (-4 to 158°F).

Battery

• Standard Battery: 3,000 mAh (11.1 Watt-hours), offering sufficient power for typical tasks.
• Extended Battery: 5,200 mAh (19.2 Watt-hours), suitable for extended shifts and high usage.
• Charging: Equipped with a microUSB for fast battery charging.

Wireless Connectivity

• WLAN: Supports 802.11 a/b/g/n Wi-Fi with MIMO technology for enhanced connectivity and coverage.
• Bluetooth:
  • v4.0 with BLE (low energy) on Android models for efficient communication.
  • v2.1 + EDR on WEC7 models, providing reliable data transfer.
• Security: Compliant with Cisco Compatible CCX v4, ensuring enterprise-grade security.

Decoding and Barcode Scanning

• 1D Imager: 2500 pixel sensor with sharp green LED scan line, optimized for linear barcodes.
• 2D Imager: Megapixel sensor with white LED illumination for extended range scanning of 2D barcodes.
• Datalogic ‘Green Spot’ Technology: Provides visual confirmation for successful scans.
• Decoding Capability: Reads all standard 1D codes, including GS1 DataBar, and 2D codes like QR Code, Data Matrix, Aztec Code, and postal codes.

Interfaces and Connectivity

• Main Connector: USB 2.0 High-Speed Host (480 Mbps) and Client; RS-232 up to 115.2 Kbps.
• Ethernet: Connectivity via single dock or multi-slot dock for networking needs.
• Additional Ports: MicroUSB port for power and communication.

Audio

• Wideband Speech: HD Audio support for Android devices, enhancing voice recognition and communication.

Software and Configuration

• Pre-Installed Software:
  • Wavelink Avalanche and Terminal Emulation (for WEC7 and pistol-grip models).
  • Pal Application Library pre-licensed (WEC7 only).
  • 42 Gears SureLock (Android models).
• Development Tools:
  • Datalogic SDKs for Windows and Android.
  • Wavelink Studio and MCL-Collection for WEC7 development.
• Browser Lockdown: SureLock locked web browser pre-installed for secure internet access.

Physical Characteristics

• Dimensions:
  • Handheld: 19.3 x 7.6 x 4.2 cm (7.6 x 3.0 in).
  • Pistol Grip: 19.3 x 7.6 x 15.6 cm (7.6 x 3.0 x 6.2 in).
• Weight:
  • Handheld (Standard Battery): 388 g (13.7 oz).
  • Handheld (Extended Battery): 422 g (14.9 oz).
  • Pistol Grip (Standard Battery): 482 g (17.0 oz).
  • Pistol Grip (Extended Battery): 516 g (18.2 oz).

Safety & Regulatory

• Agency Approvals: Compliant with international safety and regulatory standards.
• Environmental Compliance: Meets EU RoHS requirements.
• Laser and LED Classification:
  • Laser: VLD – Class 2, IEC/EN60825-1 compliant.
  • LED: Classified as Exempt Risk Group per IEC/EN62471.

Applications

• Retail: Ideal for inventory management, shelf replenishment, price verification, and order entry.
• Warehousing and Logistics: Suitable for picking, shipping, and receiving tasks.
• Mobile Commerce: Can be used for assisted sales and line busting in stores.

Warranty

• 1-Year Factory Warranty: Covers manufacturing defects and ensures peace of mind.

These comprehensive specifications showcase the Skorpio X4’s versatility, making it suitable for various industries requiring reliable, rugged mobile computing solutions.
