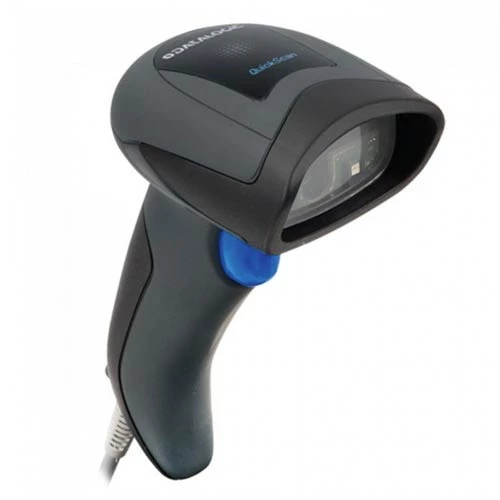

Datalogic QuickScan QD2430-BK 2D Barcode Scanner
Datalogic QuickScan QD2430‑BKK1S is a compact, high-performance handheld 2D area imager engineered for omni‑directional scanning of all standard 1D/2D, stacked, and postal codes—capturing even damaged or poorly printed barcodes with precision thanks to its VGA sensor, wide 48° × 37° field of view, and motion tolerance up to 25 ips. It reads linear barcodes down to 4 mil resolution and offers a scanning range of approximately 50–600 mm, guided by dual blue triangle aiming LEDs and Datalogic’s visual Green Spot good-read confirmation.
Built to last, it provides IP42 sealing, 1.5 m drop resistance, and a trigger rated for over 10 million actuations, all in a lightweight (~145 g) ergonomic design. Connectivity is flexible with USB, RS-232, and keyboard-wedge options, and the unit supports high ambient lighting up to 86,000 lux while drawing just ~140 mA @5 V. Backed by a five‑year warranty, the QD2430‑BKK1S is ideal for retail, healthcare, and light‑industrial environments requiring reliable, efficient scanning.
Description
Datalogic QuickScan QD2430-BK 2D Barcode Scanner
Specifications
-
Overview
- The QuickScan™ QD2430 is a 2D barcode imager designed to meet the needs of retailers and other industries, offering fast and reliable scanning for both 1D and 2D barcodes.
- Ideal for point-of-sale (POS) applications, mobile device barcode scanning, and future-proofing for upcoming barcode and imaging requirements.
-
Imaging and Scanning Performance
- Imaging Technology: Area imaging for superior performance on 1D and 2D barcodes.
- Omnidirectional Reading: Quickly scans in any direction, enhancing user productivity.
- Advanced Motion Tolerance: Smooth scanning with a motion tolerance of up to 25 inches per second (IPS).
- Illumination and Aiming: Features soft red illumination and blue LED aiming to reduce operator eye strain.
- Resolution: Reads barcodes as small as 0.102 mm / 4 mils (linear codes).
-
Barcode Decoding Capabilities
- 1D Codes: Supports all standard linear barcodes, including GS1 DataBar™.
- 2D Codes: Reads complex 2D barcodes like QR Code, Data Matrix, Aztec Code, and more.
- Stacked Codes: Compatible with stacked codes such as PDF417, MicroPDF417, and GS1 DataBar Composites.
- Postal Codes: Reads various postal codes, including USPS, British Post, and China Post.
-
Durability and Environmental Resistance
- Drop Resistance: Withstands multiple drops from 1.5 m (5 ft) onto concrete.
- Sealing Rating: IP42 protection against dust and water.
- Operating Temperature: 0°C to 50°C (32°F to 122°F).
- Ambient Light Resistance: Operates in lighting conditions up to 86,000 lux.
-
User Feedback and Visual Indicators
- Green Spot Technology: Patented Datalogic technology for visual confirmation of a successful read.
- Reading Indicators: Beeper with adjustable tone and volume, plus good-read LED.
-
Physical and Connectivity Features
- Dimensions: 16.3 x 9.1 x 4.1 cm (6.4 x 3.6 x 1.6 in).
- Weight: 145 g (5.11 oz).
- Interfaces: USB, RS-232, and keyboard wedge options.
- Available Colors: Black and white options for different environments.
-
Power and Electrical Specifications
- Operating Current: 140 mA at 5 VDC.
- Standby Current: 50 mA at 5 VDC.
- Input Voltage: 4.5 to 14 VDC.
-
Software and Utilities
- Configuration: Datalogic Aladdin™ configuration software for easy setup.
- Remote Management: Supports remote host downloads to reduce service costs.
- JavaPOS and OPOS: Compatible for seamless integration in POS systems.
-
Warranty
- Standard Warranty: 5-year factory warranty for reliable long-term use.
QuickScan™ QD2430 provides robust performance and versatile features, making it an ideal solution for retail, logistics, and commercial environments.
