Description

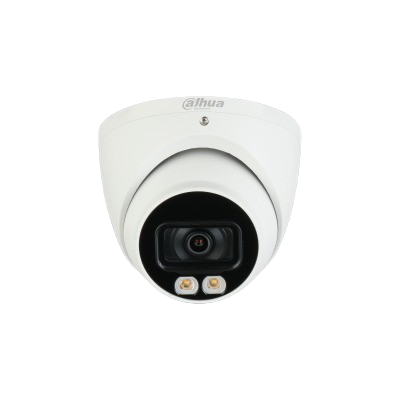

Dahua HDW1200CQP-IL-A 2MP Smart Dual Light Dome Camera

Dahua HDW1200CQP-IL-A is a high-performance 2MP Smart Dual Light Dome Camera that delivers exceptional surveillance capabilities with its advanced imaging and illumination features. Equipped with a 2MP CMOS sensor, the camera captures high-quality 1080p resolution video for both day and night monitoring. Its dual light system, combining infrared (IR) and warm white light, ensures optimal visibility in low-light environments, providing full-color footage even in complete darkness. With its Digital Wide Dynamic Range (DWDR), IP67 weatherproof rating, and easy installation, this camera is an ideal solution for secure monitoring in various environments, including residential, commercial, and industrial spaces.

Product Features

2MP CMOS Image Sensor

The HDW1200CQP-IL-A features a high-quality 2MP CMOS sensor that provides clear and detailed video surveillance. With a maximum resolution of 1920×1080 (1080p), this camera ensures sharp images, making it easier to monitor and identify faces, vehicles, and objects with excellent clarity.

Dual Light Illumination (IR & Warm Light)

The camera integrates dual light technology, which includes infrared (IR) for black-and-white footage in complete darkness and warm white light for full-color images in low-light conditions. This feature ensures that your surveillance system can deliver optimal image quality regardless of the time of day or lighting environment.

Wide Dynamic Range (DWDR)

With Digital Wide Dynamic Range (DWDR), the HDW1200CQP-IL-A optimizes image clarity by balancing exposure in scenes with both bright and dark areas. This allows the camera to provide clear video in environments with varying lighting conditions, such as entrances or parking lots with strong sunlight or shadows.

Fixed Lens and Adjustable Field of View

The camera offers a fixed-focal lens with options of 2.8mm or 3.6mm, providing different field-of-view angles. The 2.8mm lens offers a wider field of view (H: 102°; V: 60°), while the 3.6mm lens delivers a more focused coverage area (H: 83°; V: 48°), allowing for flexible installation based on the surveillance requirements.

IP67 Weatherproof Rating

Designed for both indoor and outdoor applications, the HDW1200CQP-IL-A comes with an IP67 weatherproof rating, ensuring it is protected against dust and water. This makes it a reliable option for use in challenging environmental conditions, ensuring performance in extreme weather, from heavy rain to freezing temperatures.

Smart IR & Warm Light Mode

The camera utilizes Smart IR technology, which automatically adjusts the infrared light intensity for optimal image quality at night. Additionally, the warm light mode can be activated to enhance visibility and provide color footage even in dark environments, ensuring clear surveillance day or night.

Product Specifications

• Image Sensor: 2MP CMOS
• Max Resolution: 1920 × 1080 (1080p)
• Scanning System: Progressive
• Shutter Speed: PAL: 1/25 s–1/100000 s; NTSC: 1/30 s–1/100000 s
• Min. Illumination:
  • 0.01 lux @ F2.0 (Color, 30 IRE)
  • 0.001 lux @ F2.0 (B/W, 30 IRE)
  • 0 lux (Illuminator on)
• S/N Ratio: >65 dB
• Illumination Distance:
  • IR: 20m (65.62 ft)
  • Warm Light: 20m (65.62 ft)
• Lens: Fixed-focal (2.8mm / 3.6mm)
• Field of View (2.8mm):
  • H: 102°; V: 60°; D: 129°
• Field of View (3.6mm):
  • H: 83°; V: 48°; D: 105°
• Wide Dynamic Range: DWDR
• White Balance: Auto-Area white balance
• Noise Reduction: 3D NR
• Power Supply: 12VDC ± 30%
• Power Consumption: Max. 2.6W (12VDC, IR on)
• Video Output: CVI/TVI/AHD/CVBS via BNC
• Illumination Modes: Smart IR, Smart WL, IR Mode
• Mounting: Wall mount, ceiling mount, vertical pole mount
• Weatherproof Rating: IP67 (dustproof, waterproof)
• Operating Temperature: -40°C to +60°C (-40°F to +140°F)
• Dimensions: Φ97.1 mm × 93.8 mm (Φ3.82″ × 3.69″)
• Weight: 0.18 kg (0.40 lb) (net)
• Certifications: CE, FCC compliant
